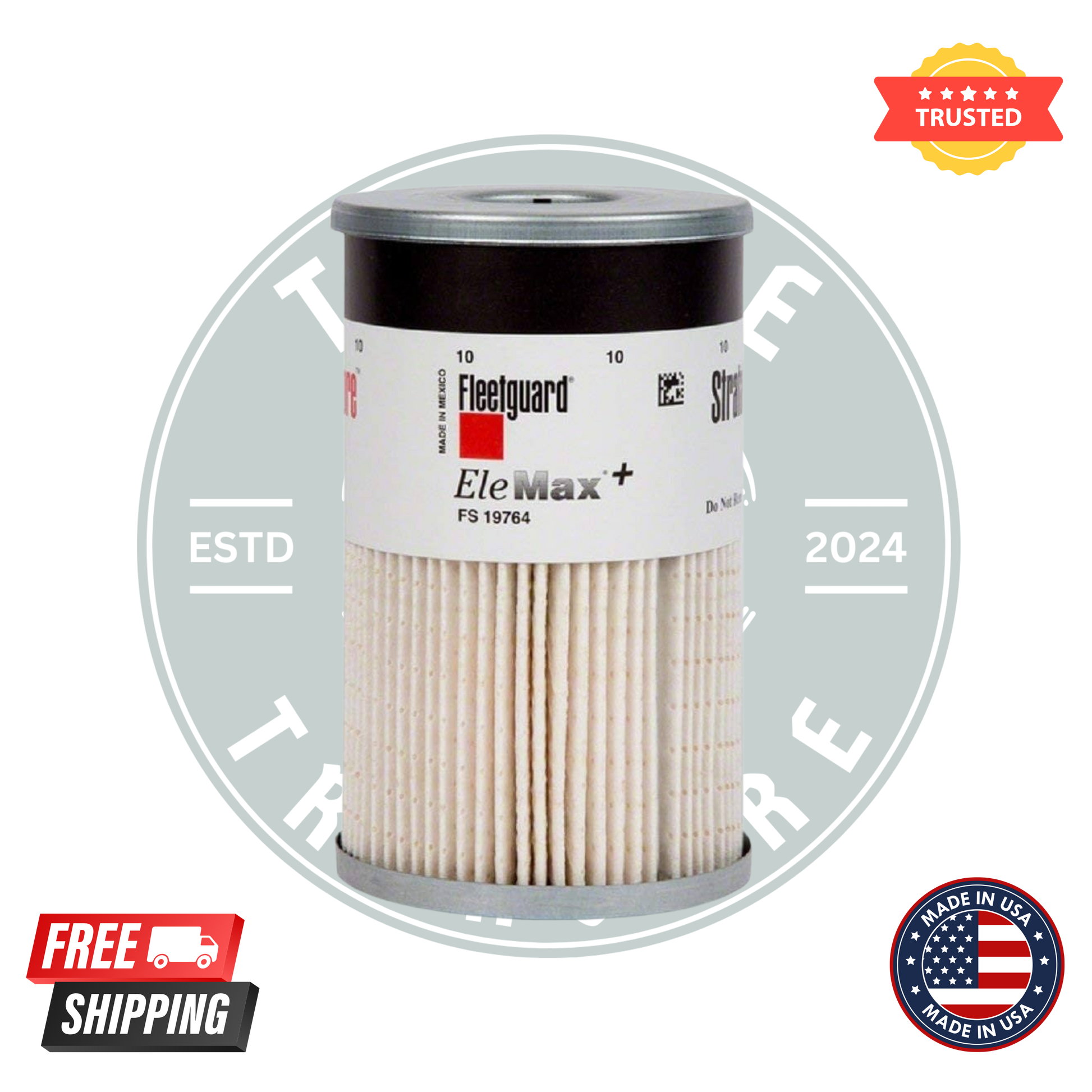

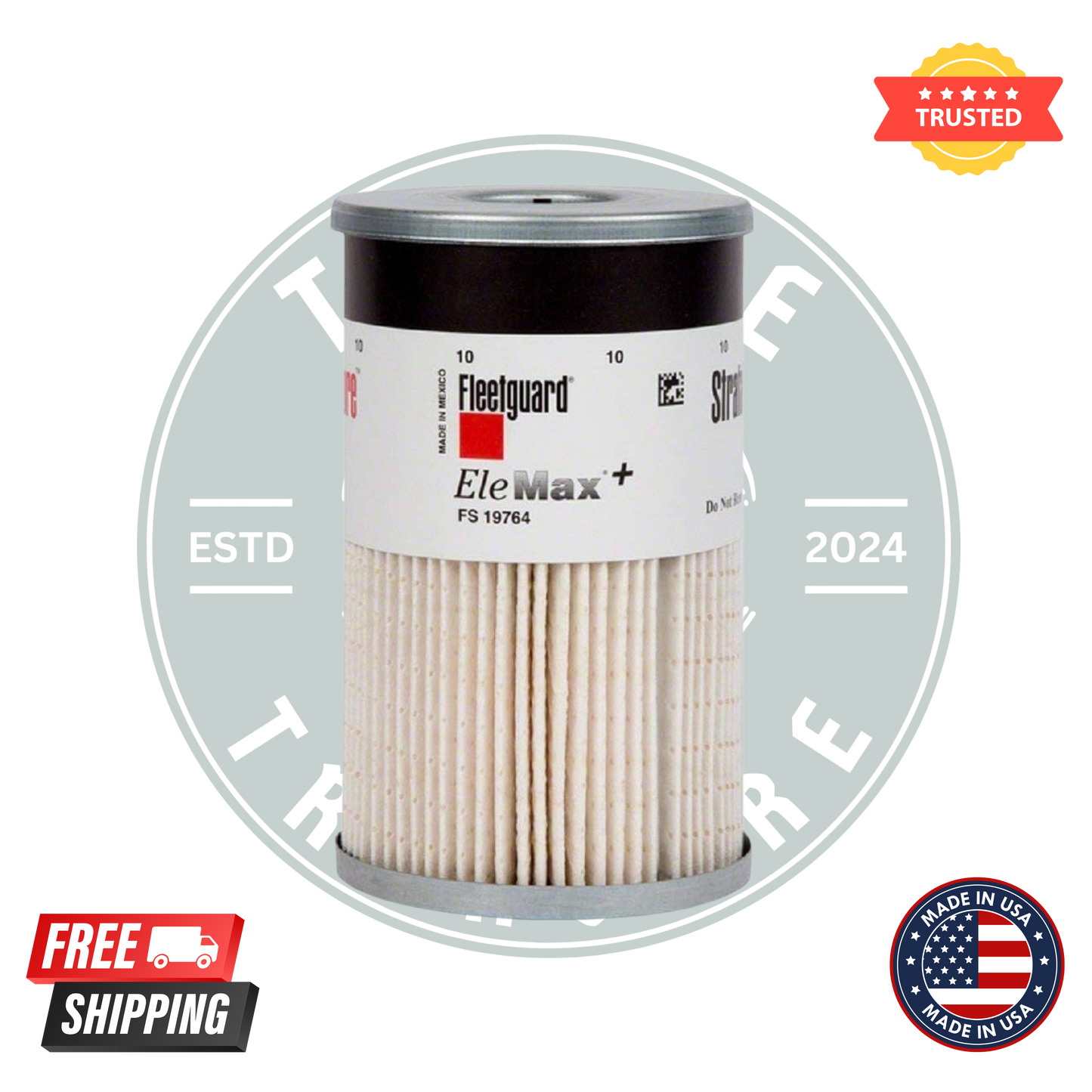

Fleetguard FS19764 Separator Fuel/Water Filter Cummins Heavy Duty Tractor Pack of 6

Fleetguard FS19764 is a high-performance filtration solution designed to protect diesel engines by effectively removing water and contaminants from fuel. As an extended-length version of the FS19727, it offers increased capacity and longer service intervals, making it ideal for heavy-duty applications.

Product Specifications

• Part Number: FS19764
• Filter Type: Fuel/Water Separator Cartridge
• Media: StrataPore™ synthetic media
• Micron Rating: 10 microns (SAE J1985)
• Efficiency: 98.7% (Total Water Absorption)
• Water Separation: 95% (Emulsified and Free Water)
• Outer Diameter: 106.93 mm (4.21 in)
• Inner Diameter: 16.76 mm (0.66 in)
• Length: 178.79 mm (7.04 in)
• Used With: FH23441 fuel housing
• Upgrade Of: FS19727

Vehicle & Engine Compatibility

The FS19764 is compatible with a wide range of heavy-duty diesel engines and vehicles, including:

• Cummins Engines: ISX12, ISX15, X12, X15, QSM12, QSX15, ISL, ISXE5
• Caterpillar Engines: C11, C13, C15
• International Trucks: ProStar with MaxxForce 13 and 15
• Freightliner Trucks: Argosy, Cascadia, Coronado, M2 with Cummins ISL, ISX15
• Kenworth Trucks: T440, T470, T800, W900 series with Cummins ISL, ISX12
• Peterbilt Trucks: 357 with Cummins ISL8.9, ISL9
• Autocar Trucks: Xpeditor with Cummins ISX12, ISX15
• Hitachi Equipment: EH3000, EH3500 haul trucks; EX5500-6, EX5600-6, EX8000-6 excavators with Cummins QSK50, QSK60

Cross Reference Part Numbers

The FS19764 can replace the following filters:

• Baldwin: PF9814
• Donaldson: P550849, P179960
• Fram: CS11023
• Luber-Finer: L9763FXL
• Wix: 33964
• Davco: 102527, 382140, 382146
• NAPA: 3964
• Others: 5580012785, 5580007857, FS550849, FS550852

Key Benefits

• Extended Service Life: Longer length allows for increased contaminant holding capacity, reducing maintenance frequency.
• Superior Filtration: Captures 98.7% of particles down to 10 microns, ensuring clean fuel delivery.
• Effective Water Separation: Removes 95% of emulsified and free water, protecting fuel systems from corrosion and wear.
• Versatile Compatibility: Designed to fit a broad range of engines and fuel systems, including biodiesel applications.
